Brand: Circuit Tech
Process Flow: Load→Water Washing → Etching → Ammonia Water Washing → Water Washing → Inspection → Tin Removal → Water Washing → Cold & Hot Drying → Unload
Origin: China
Conveying Speed: 1.0 ~ 6.0m / min (adjustable)
Board size: 610 * 610mm (maximum) 150 * 100mm (minimum)
Thickness: 0.2 ~ 3.2mm
Conveying Width: 700mm (640mm Effective Width)
Line Reel Film Specifications: Ø 43mm
Roller Wheelbase: 55mm uncoated film, other 65mm
Water Consumption: 24~36L/min
Power Consumption: 35KW/H (pump and fan power), 36KW/H (heating tube power)
Control System: Programmable PLC Controller (Japan LG) and Man-Machine Interface (Taiwan Weilun)
Equipment Feature:
Etching parameters: 1. Etching uniformity ≥ 92% or more. 2. Etching factor ≥ 3.0
Film Removal :
1. The body is designed with stainless steel to prevent the body from aging.
2. The drum filter residue method can effectively remove the peeled film and facilitate the management.
3. The bulky design is added before the film is removed to effectively reduce the film removal time.
Our Service:
Terrene offers a one-stop service for customers overseas who need someone trustworthy to help them to search, purchase and integrate the goods they want. Terrene can save you plenty of time and energy, minimize the purchasing cost and offer the right products you need. This high efficient working way will promote your business development greatly.
Terrene follows closely with PCB-related techniques and industrial development figures, continuously optimize and develops new products, and helps the enterprises to have superior services and best investment rewords.
Terrence will offer enterprises the best products, the best whole-set services, with the best reputations. Terrene is willing to be your reliable long-term partner.
Contact Info :
Terrene Trading Limited
Address: 2F, Building 4, Xinxintian Industrial Park, Shajing Street, Baoan District, Shenzhen, China
Contact Person: Jo Wan
WhatsAPP/Wechat: +86-18823363695
Teams:licpao2324 Tel: +86-755-89492858 Fax: +86-755-29711515
Wechat:+86-18823363695
E-mail: jo3104221453@gmail.com
Product Tags:
|
|

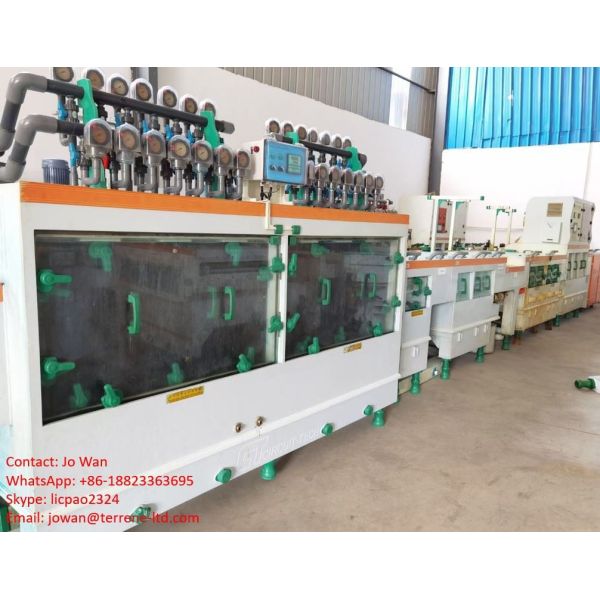

PCB Etching Tin Stripping Machine Images
|
